How to Make a Camera Obscura Part 3



In this part of the tutorial we continue building the camera obscura.

Part 1 of this tutorial is here



Add paper

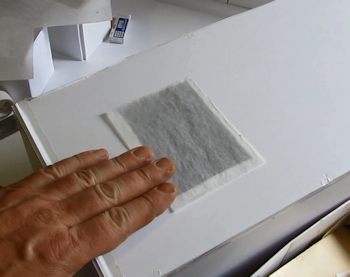

Cut a piece of tracing paper and put it over the observation window. If you don't have tracing paper you can use Wax paper. One sheet might work but you might need two sheets of wax paper.



Add viewport

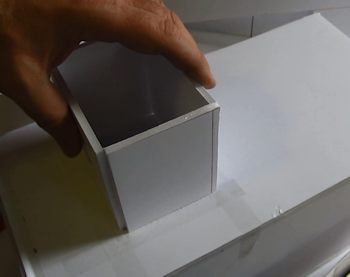

Place the shroud over it temporarily.



Add frontpiece

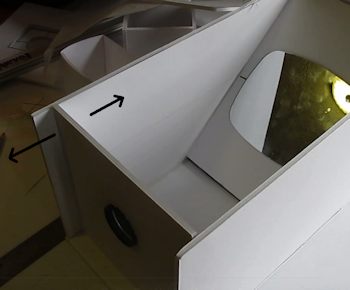

Now put that front piece on. (the one with the lens on it) and check your image in the observation window. Does an image show? Is it blurry. Move this front piece back and forth like the black arrows show in order to bring the image into sharp focus.

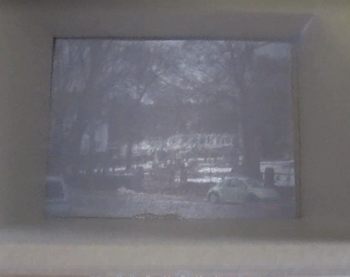

The view

Will

Will's Tips on getting it to work good t Keep everything straight. Make sure that wall with the lens is nice and straight up and down. It needs to send the image straight to the mirror then bounce up straight to the observation window.

And , Light is very important for this. Point it out a window on a bright and sun shiny day. Keeping yourself and the box in low light. The shroud you made helps a lot.



Glue it

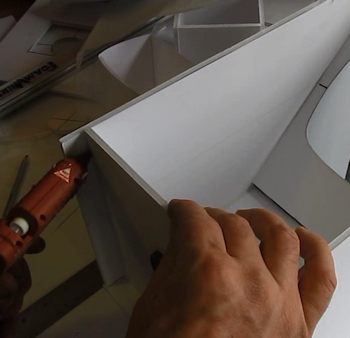

Once you have it set up so it works maximum well you can go ahead and glue that front plate in.

Then glue the top piece on.





add lens

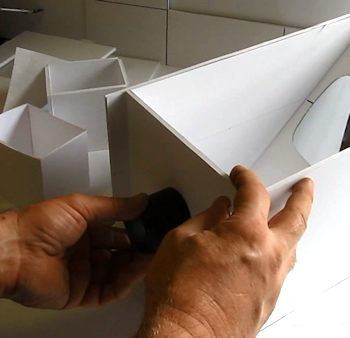

If your telescope had a dew cap you can also glue that onto your box over the lens.



Seal it

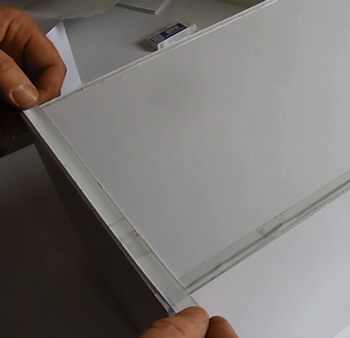

Now, tape over any cracks in your camera obscura. You want to seal it from light. It should be nice and dark inside that box. Seal around the edges of your shroud too.

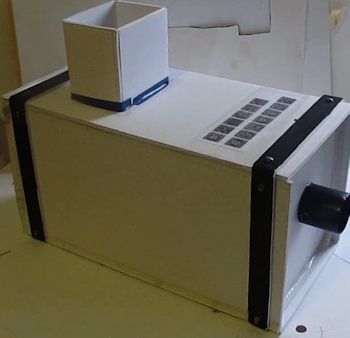

The completed camera obscura

Your camera obscura is done. From here you can add details and decorations. I added two foam board bands to look like metal bands. The silver dots on the bands look like rivets but they are just globs of hot glue.



Okay! Your Camera Obscura is done. But you can also use it to draw and trace pictures.

NextContinue and learn how to do this
