How to Forge a Medieval Great Helm - Part 5

In this part of the tutorial we assemble the parts of the helmet together using nuts and bolts.

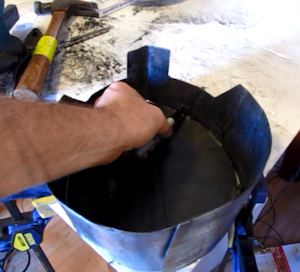

Mark the hole locations

Ok, those holes we made in the top piece need to have corresponding holes in the helmet top half. That way we can bolt and rivet these two parts together.

So, lay the top down with the tabs up and put the helmet piece right in its proper location as if the helmet were assembled. Then use a marker to go through those holes, marking the helmet. Do that for all the tabs.

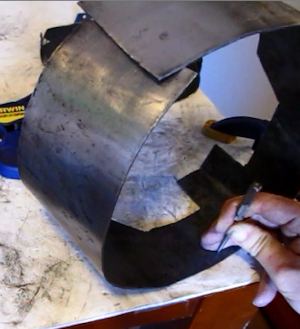

center punch the holes

Hit all those marks with a center punch. This is important so the drill doesn't float around. This way the drill sits and stays in the exact spot because there is a divet there.

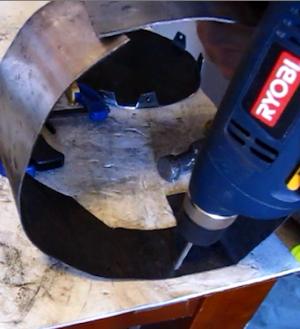

Drill the holes

Go ahead and drill those holes out. Use a drill size that is appropriate for your rivets or bolts. I am using a 3/16 drill.



Take a break

Take a break before you continue. This blacksmithing/metalworking is some hard stuff!

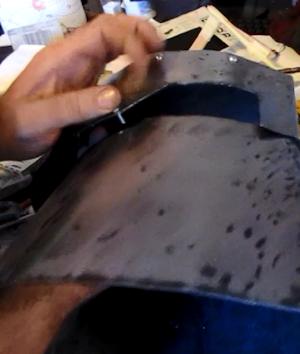

Bolt the two halves together

Now go ahead and put nuts and bolts through those hole pairs. This assembles the two pieces of the helmet together. You will have to tinker with the steel a little bit, depending on how evenly you shaped the curves. I am using 10-32 bolts that are 3/4 inch long.

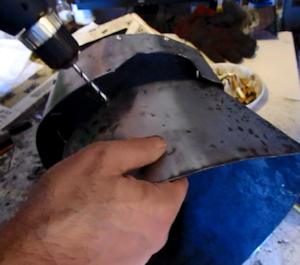

Now drill for the bottom half

Now we assemble the bottom half to the top half. We do it the same way. Drill a series of holes around the top half, transfer those hole locations with a marker and drill out the holes in the bottom half.

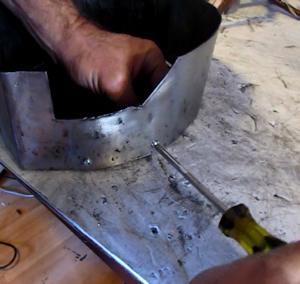

Bolt the bottom half on

And just as before we bolt the two halves together. One thing to note is that you are going to have to tweak and move the metal halves a bit. To facilitate this you might want to drill one set of holes at a time. Bolting each hole pair as you go.

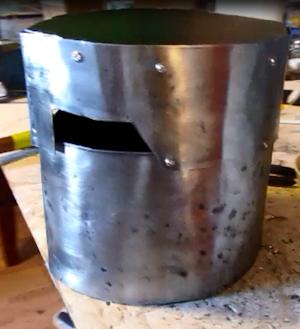

The helmet is bolted together

There you go! It is all bolted together. It is assembled and it looks great. But there is more work to be done.

NextLet's continue with the tutorial
