Make a Medieval Great helm part 6

Now that we have bolted the helmet together and it is in the shape we want we are ready to take out those bolts and permanently rivet it all together.


The Rivets

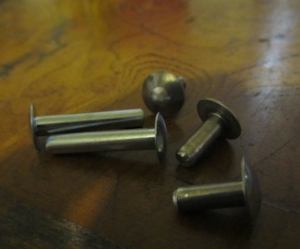

About the rivets. This picture shows a couple of different sizes. They are mild steel solid rivets of differing lengths. The head can be either truss head or brazier head. Of course you have a whole lot of options when it comes to rivets. These are what I used.

Hot rivet

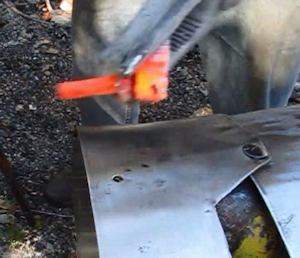

Now we need to take each bolt and nut out and replace it with a rivet. You can see in this picture that a bolt is removed (empty hole) and we have heat a rivet. This helmet is right on the horn of the anvil.

Insert the rivet

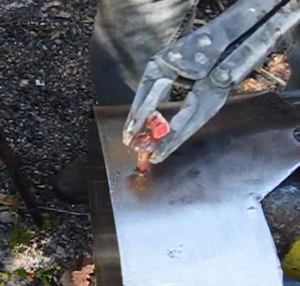

That rivet gets inserted and hammered. It peans over on the inside against the horn of the anvil. I generally start it with a one pound hammer then move up to a two pound hammer to finish it.


Hot cut the rivet

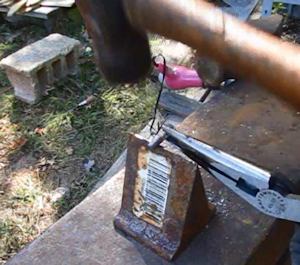

The rivets can be too long to mushroom over nicely so you can shorten them either by cutting while cold or by hot cutting like this on a hot cutting tool. This is inserted into the hardy hole and you hammer on the rivet. It slices it down to the desired size. I have more about hardy tools right here


Another hot rivet

Ok! Continue riveting until all the bolts are replaced by rivets. Yup, it will take some time and if you are unhappy with a rivet you can remove it and replace it with a new one.


NextLet's continue with the tutorial
