Make a Karambit - Part 2

In this part of the tutorial we work on the blade by shaping it, profiling it, beveling it and drilling the holes in it.

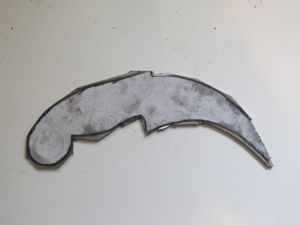

Rough cut

Use hand tools, or power tools to rough cut that blade out of the blank of steel. If you have a bandsaw that would be great. I predominantly used a hacksaw.

Get it close to the lines leaving a little bit of extra.

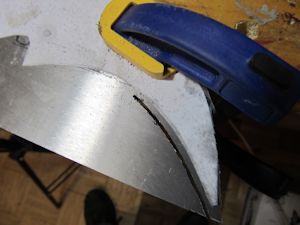

Hacksaw cut

Here is a look at the hacksaw cutting that I did. You can do some curving with the hacksaw. just cut away pieces to eventually get it cut all the way around.

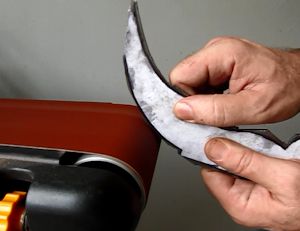

Use a belt sander

Now we want to get the shape of the knife to its final shape. A belt sander is great for this. Use any tools you have available. You can do all of this work with a file if need be. It just takes a while.

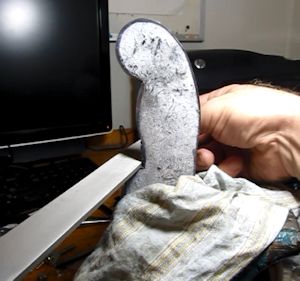

File the shape

This shot shows me using a file. It is really good for the sharp corners in the knife. Get this knife to its final shape.

Other tools you can use are a one inch belt sander and even a dremel tool.

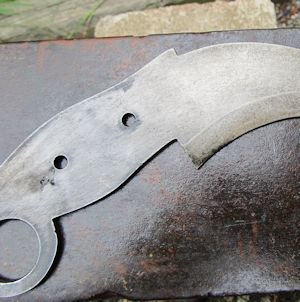

The three holes

Now we should drill the three holes in the blade. Two are for the handle and the third hole is the large finger hole. The finger hole is 1 inch in diameter and the smaller holes are one quarter inch.

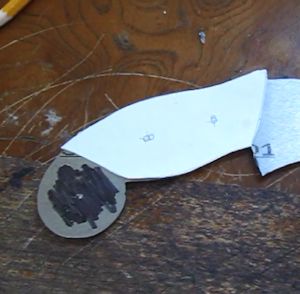

Mark the handle holes

Use the paper template to mark where the two handle holes should go. I left them blank but make them something like this. You hit those locations with a center punch then you can drill them out.

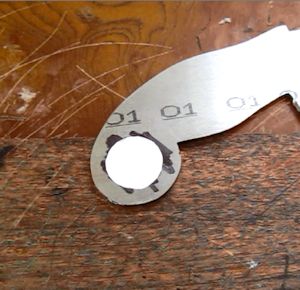

Locating the finger hole

To mark the location of the center hole I cut a one inch circle of paper. This way I could move it around and get it nicely centered before marking it with a center punch for drilling.

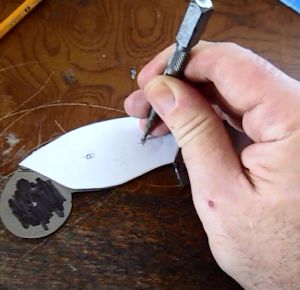

Center punching

This is a center punch. You put it right on the spot then rap it with a hammer.

NextLet's Continue with the tutorial
