Make a Miniature Ballista Part 3

In this part of the tutorial we use string or yarn to make the skeins of twisted string that power the ballista.



Part 1 of this tutorial is here





wrap the string

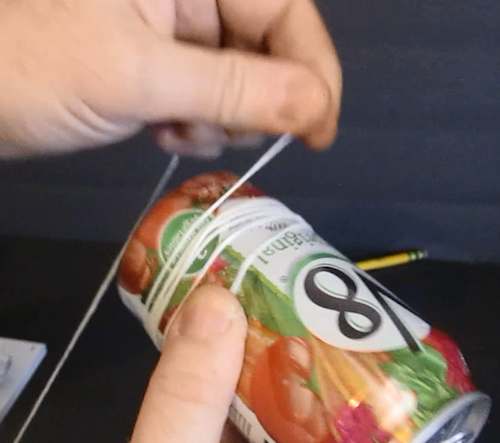

Grab yourself a bottle or can of about average size. I am using a V8 can. And wrap string or yarn around it ten times to form a loop. This is a skein.

I will show you this whole process to do one side of the ballista. But you will do it twice. Once for each side of the ballista.















The wrapped string

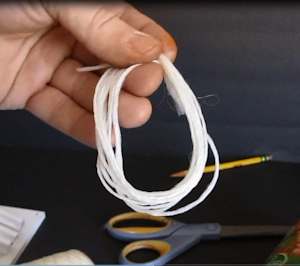

Here is the skein.















Tie a string on

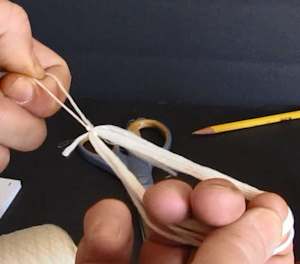

Tie a string on it.















Put dowel in the loop



Now feed it through the set of holes on one side of the ballista. All the way through. Capture one dowel in the loop at the top , pulling it tight. This peg is an inch and a half long.



















Put another dowel in

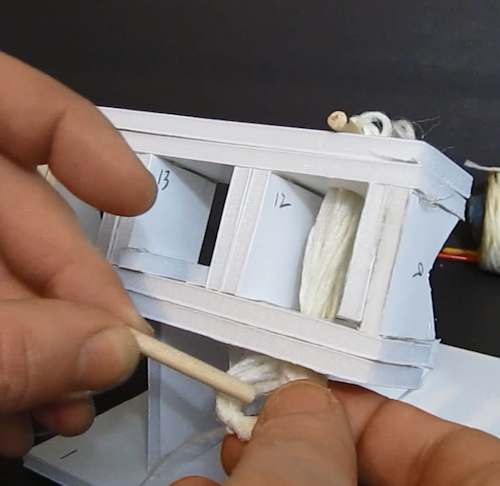

Then feed a peg through the bottom loop too. This peg is an inch and a half long.

























Feed dowel through the skein

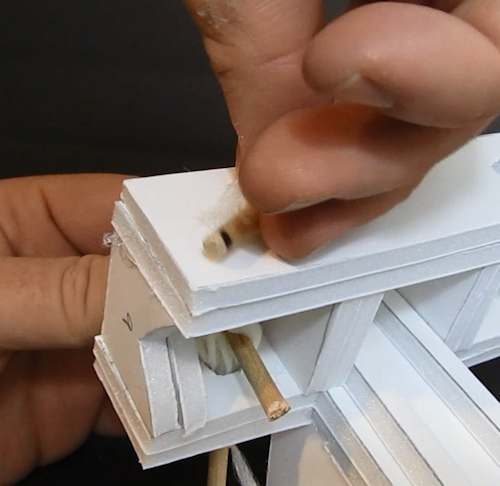

Now feed a two inch dowel through the center of the skein.

























Twist the top



Now twist the top and bottom dowels so the skein tightens up and forces the middle arm out to the side like this.



















Test it

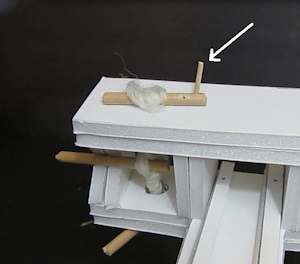

Test the springing action of the center dowel. Twist those dowels so that center one has nice snap to it. If your dowels tend to slip you can push a toothpick into the foamboard to hold the dowels from slipping.











Dab of glue

You can put a dab of glue on it to hold it in place.















NextOk! Let's finish this ballista!
