Make a Model FlakPanzer Part 2: Starting the Build with the underchassis

In this part of the tutorial I start the building of the model.

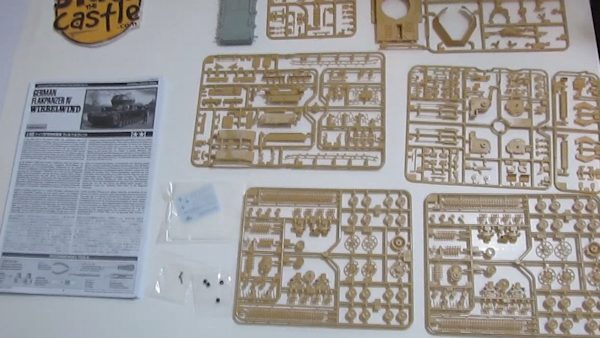

Here are the parts that come in the box.

Optionally you can gently wash all the sprues in soapy water. Don't hand dry them. Just lay them on paper towels and let them air dry. You air dry them so you don't knock any pieces off the sprues.

TYhe parts

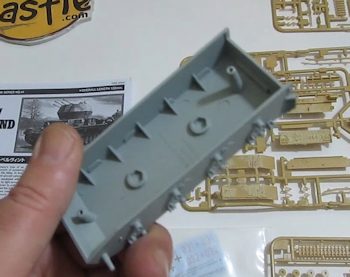

An interesting thing about this build is the metal under chassis. It adds weight and heft to the model. Not a lot of models have something like this. But it does mean that you will need some kind of super glue to attach plastic parts to it.

Under Chassis

The first step of the assembly is to do a zimmerit coating to some of the parts. Let's have some fun. I will show you how to do it.

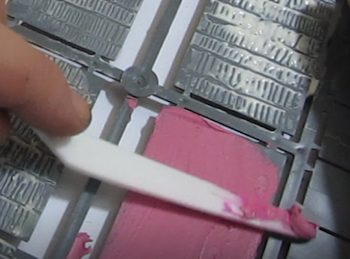

The process is extremely easy but I recommend you practice. I used this old plastic sprue with parts to practice on. You spread a thin layer of the plastic wood onto the part. The thinner the better.

Spread on Plastic Wood

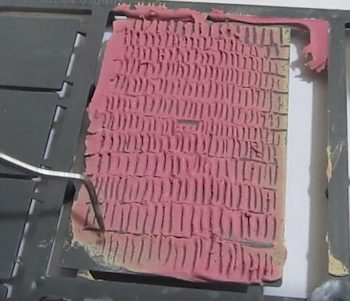

Then use a sharp tool to scratch out this kind of pattern.

Add the details

You do a series of parallel lines first then you draw a whole series of short lines between each parallel line.

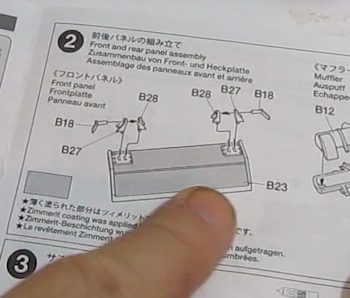

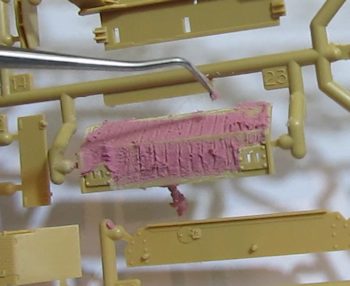

So then I went ahead and did this process on the parts on the sprue as the directions recommend them.

Instructions



Note about the pink color. This particular type of plastic wood that I use is designed to start out pink, while it is wet. And as it dries it turns to a wood color.

Applying plastic wood

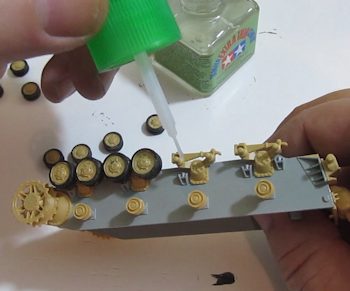

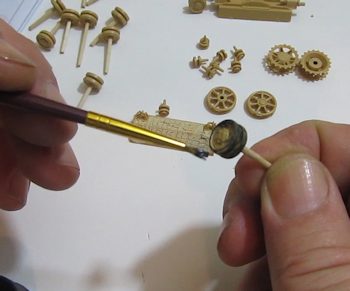

This first sub assembly is all about attaching a variety of parts to the chassis. There are a few parts miscellaneous parts and a whole lot of wheel parts.

The wheel sub assemblies



Here is the under chassis assembly almost complete. It just needs a few more wheels and the tracks.

Adding teh wheels

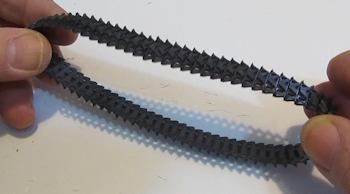

The track is assembled

And another big thing about this assembly is that is has the older style track system. Some tracked models have a rubber track that is all one piece and you attach it around all the wheels just like these tracks on the Walker Bulldog

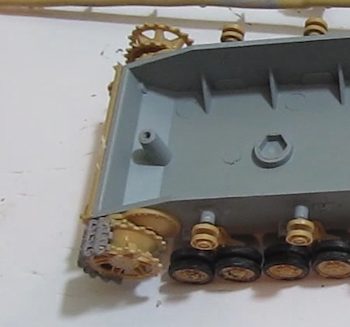

And you can see the way this tank track is assembled in the next two pictures. It is like I had previously pointed out. These tracks are different. Maybe a little bit old school? You glue three small track segments onto the drive wheels.

Putting on the tracks

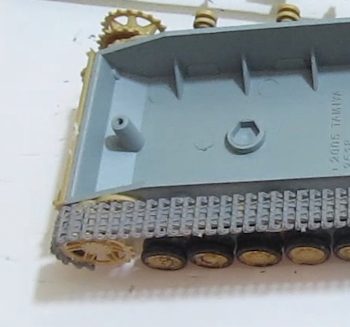

Then glue on more of the track pieces until the set is complete all the way around.

The tracks are applied

The drawback about this type of track is that it doesn't spin once it is complete like the rubber ones do.

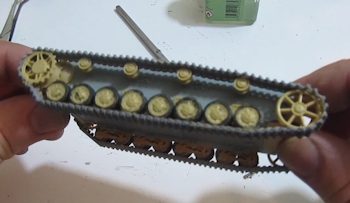

Ok, that underchassis assembly was a lot of fun and it looks great. And because the body of it is metal it has quite a nice heavy feel to it.



The under chassis is complete
