Caleb's Trebuchet

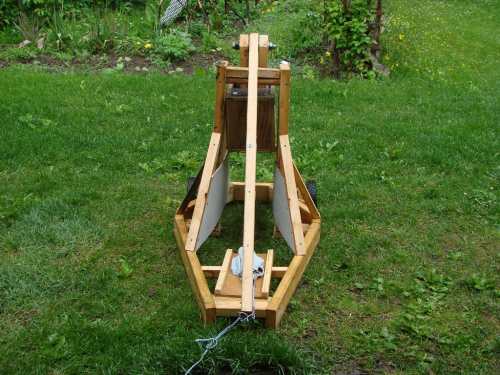

This is a fantastic mid sized trebuchet that looks great and has some dynamic power. It launches a projectile 120 feet which is a great range for this size trebuchet.

It was built by Caleb and my thanks to him for the pictures and the info. He has a catapult project on my site too. Caleb's Catapult

Below is what he has to say about building this treb.

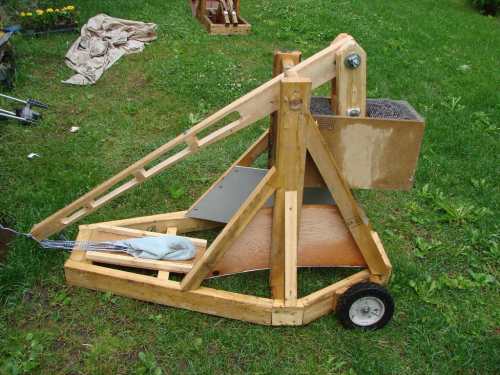

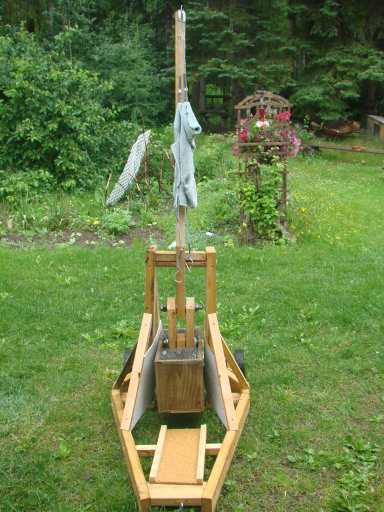

As you may wonder I am using a piece of towel as the sling because I haven't found anything yet to substitute since everything else I have isn't strong enough. I mounted wheels on it because it is super heavy and to much of a struggle to carry. After I first built it and got it firing to perfection, I then wanted to make it throw farther and higher so I tried adding and taking away certain things to increase efficiency. For instance I cut some wood out of the swing arm to reduce the restricting weight when it throw's. I also put some "walls" to guide the counter-weight box so that it doesn't hit any of the 2x4's or braces. And then I greased all the pivot points just for good measure. Now it doesn't squeak, is mobile with one person, and throw's 120+ feet. I hope you like it and I'll get a video for you sometime soon if the weather clears up.







Caleb has submitted pictures and information about his new catapult that I call the Sled-a-Pult ! It uses two bands for additional power and has a sled platform on the bottom so it slides easily over land and snow! Now we can siege castles in Winter!! See more here: Caleb's Sled-a-Pult
