Make Sting from the Hobbit - part 6: The Handle

In this part of the tutorial we make the wooden handle of the sword.



Part one (the beginning) of this tutorial is here





To do a handle like this you should use a piece of nice hardwood.
Here is the exact piece of cocobola wood I ordered for this project: Cocobolo, 2" x 2" x 12"

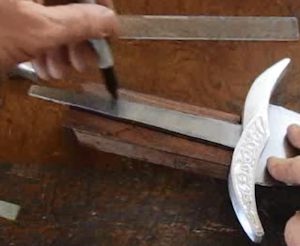

Marking for the tang

I rough cut the wood handle to a bit larger than needed. Then marked where the slot for the tang will go.

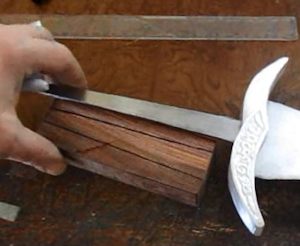

measuring the handle

This picture shows you the marks on the handle. Now I have to drill a slot right down the center of that wood piece so the tang can slide in.

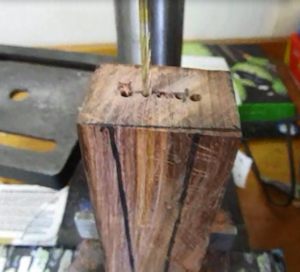

Holes as a slot

We do this the same way as the other pieces. First by drilling a series of holes in the shape of a slot.

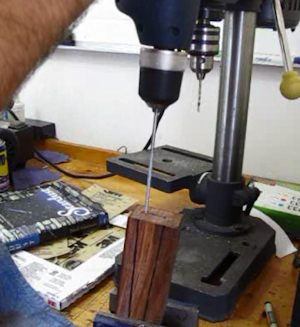

Using a long drill

Now, the handle does pose a bit of a challenge that the other parts didn't. It is unusually long (5 1/2 Inches) so a normal drill bit doesn't go all the way through. I used an extra long drill bit to accomplish the drilling. And remember that the tang is angled so not every hole is straight down.

It takes a bit of drilling and a bit of work but it is only wood so it goes reasonably quickly.

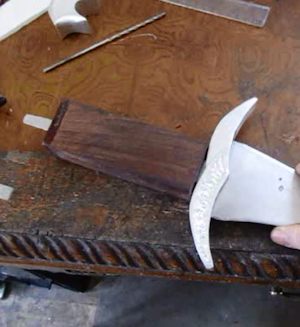

The handle fits

Ok! The handle fits very well. Now we need to carve it into an actual handle shape and custom fit it to the pommel and the guard.

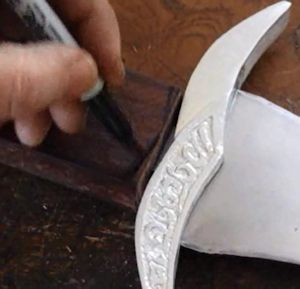

marking the handle

I mark it up here so I know where to rasp it for a custom fit to the guard. Just a little bit of a curve.

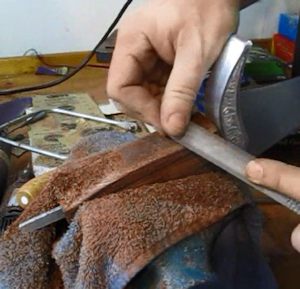

Rasping the wood handle

Then use a rasp to shape out the handle. Take your time with this. Don't over do it, particularly at the pommel end.

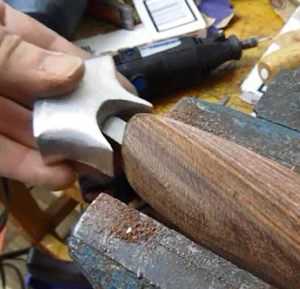

Fitting the pommel to the handle

Because that end of the handle needs to be custom rasped to the pommel and this part takes some work if you want a nice fit. I just slowly rasped away at the wood, checking it often.

Toward the end, where it was almost the right fit I was using the small files to fine tune it.

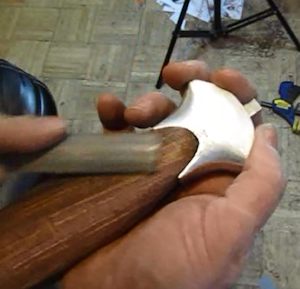

Finishing the handle

And that's just about done. The wood handle fits very well into the pommel.

NextOk, we are almost done with the building of the sword. Let's assemble the parts together and do the final design work.
