That is a big Catapult!

I got an email from a web visitor (Jerry Miller) He has made a very big and very spectacular catapult. He based this project on my Wyvern torsion catapult. And while it fires pretty strongly and has a lot of power he is looking to improve the distance of the throw.

He gives us some information on building this catapult and what he has done with it. Check out the pictures and informatio and if you can offer some advice and tips on how to improve this monster be sure to











First let's take a look at the catapult in its current state.

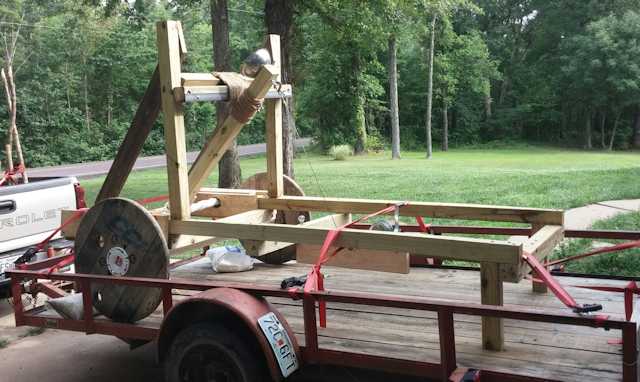

The finished catapult



First attempt. 10ft long x 4ft wide. 4x4,construction. 9ft throwing arm.  Main down fall was not enough rope (100ft) couldn't fit anymore through the hole without compromising the 4x4. Also believe it or not 3/4in black iron pipe was not strong enough for tightening the rope. I was amazed at the amount strength. You will see the bow in the boards and the rope crushed the throwing arm.

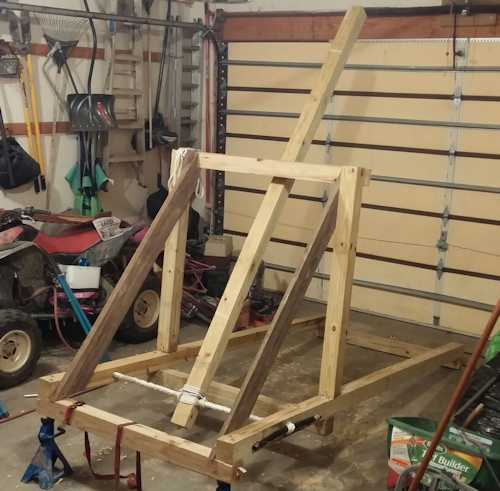

The first version

Tension has bent the bar

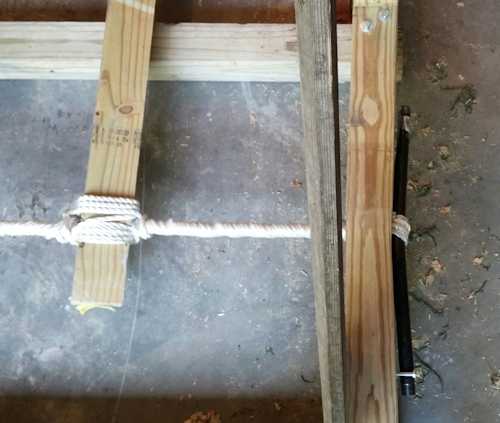

The rope wrapping

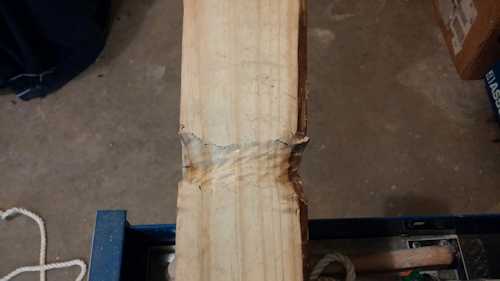

The tension has destroyed the beam



Okay! On to Stage 2 - Our Siege Engineer made a lot of changes to improve this catapult including adding a winch to wind it up. Lot of torque on that swing arm!
