Making A Telescope

Go to the Table of Contents for this booklet

This is a little project that gives you the basic idea for making a small telescope of your own. You will need for the project:

2 Cardboard tubes with one a little bit wider than the other and 2 convext lenses and some cardboard to mount the lenses and some glue.

The diameter of the objective lens should be approximately two inches and its focal length should be approximately 18 inches. The eyepiece lens should be small that two inches in diameter and have a focal length of approximately two inches.

You can test the focal length of a lens by focusing an image of the sun onto a white piece of paper. When the inage of the sun is sharp the distance the lens is away from the paper is the focal length.



The telescope

Step 1: Cut from cardboard four circular rings. Make 1 of the mthe inside diameter of the small tube. and make three of them the inside diameter of the large tube.

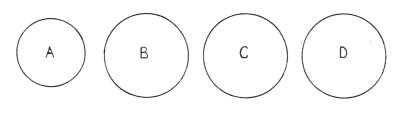

cardboard rings

Step 2: Cut a hole in the center of ring A and glue the eyepiece lens into it.

Step 3: Cut a hole in the center of ring B and glue the large objective lens into it.

Step 4: Cut holes in rings C and D so they will snugly slide over the thin tube and glue them in place as shown below.

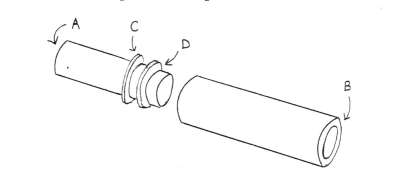

The telescope assembly

Step 5: Glue the ring/lens assemblies onto the corresponding tubes.

Step 6: After the glue has dried the eyepiece tube will snugly slide into the objective tube.

Using the Telescope

Slide the tube in and out in order to focus on the object ou want to view. Note that this simple telescope will show objects to be upside down.

NextContinue on to Using a Camera to take night sky photos
