Mounting a video camera to the RC airplane

I thought it would be a fun project to mount a video camera onto an RC airplane so that's what I have done. On this page I have some information, pictures and a video about this.

There are several ways to do this and I even considered mounting another servo inside the plane so I could control the camera. But maybe that will be the next step. For now I just got a Flip video camera, made a box for it and mounted it to the bottom of the plane. It should give me some fun video footage and when I fly the plane I will post the footage to this page so you can see. The video below shows a little bit about the camera and how I mounted it to the plane.

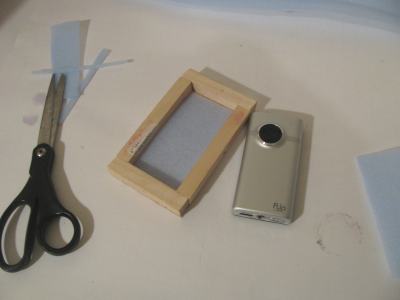

The Camera Mount

The Camera Mount - It's a pretty simple set up using a flip camera which is very light weight, HD and can record two hours of video.

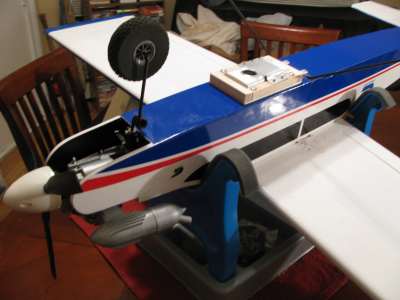

Camera Mounted Under Plane

Here is the Camera Mounted Under the Plane.

















I have taken this plane out for a flight with the camera mounted underneath. I got some great footage and I crashed the plane! I got that on film too: See it here: Crashing the RC Airplane with a camera on board
