Trebuchet Blueprints

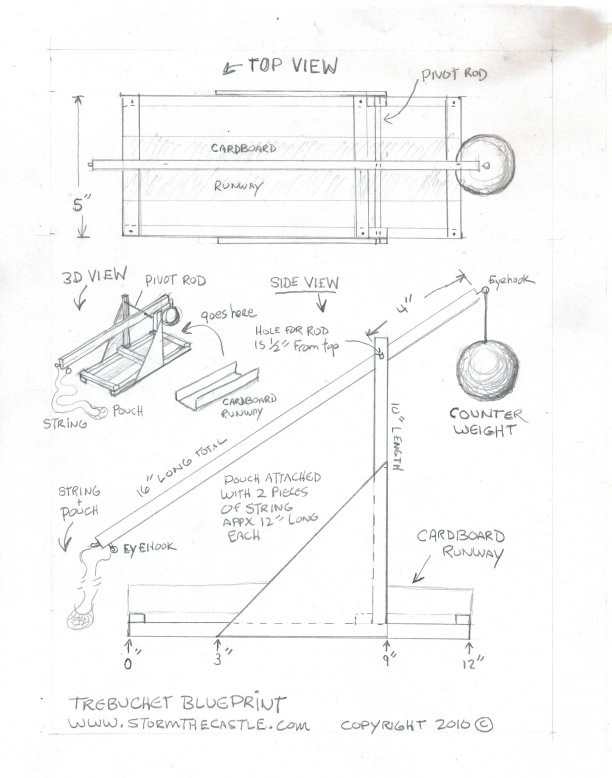

Here is a set of blueprints for a small table top sized trebuchet. It is all on one sheet of paper that is 8.5 x 11 inches so it should be easy to download and print up. This set of blueprints is for the make a trebuchet project that I have here on the website: How to Make a Trebuchet

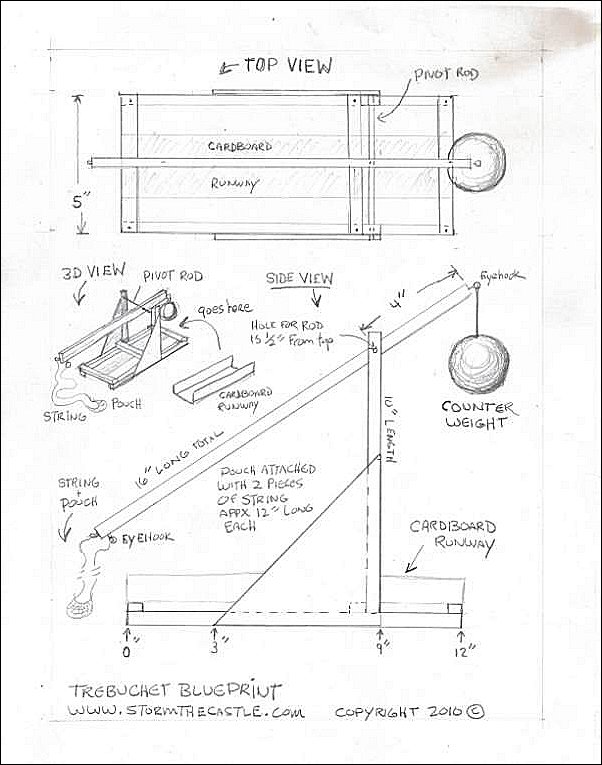

You can download it here: Trebuchet Blueprint Just right click and select save as then put it somewhere on your computer so you can open it and print it up. I also have a smaller version embedded right into this web page so if you prefer you can just right click on that image and save it to your computer so you can print it out.
Here is a picture of a trebuchet that was made from this plan:
