This is what Christopher tells us about how he and Nick build it:

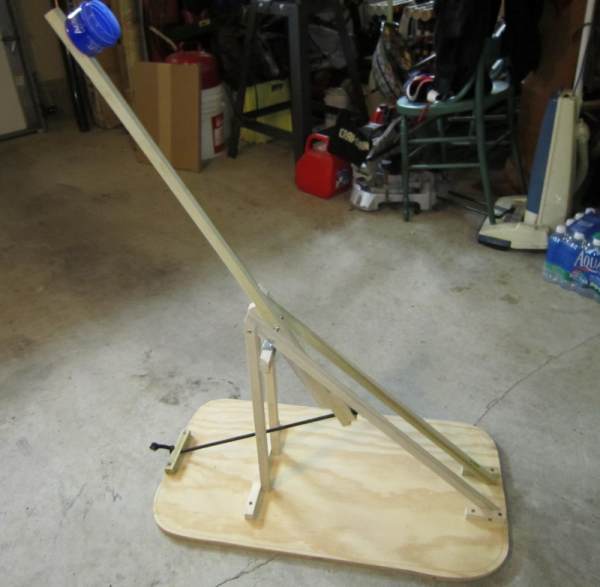

For the pivot we used a 1/4 in diameter bolt with threads all the way up and put nuts on each side of the supports and each side of the throwing arm to keep it centered. For the power cord we cut the hooks off of a 48 inch black bungee cord and tied knots on each end as needed for power. We wrapped duct tape around the wood that the throw arm stops against for padding. After pre-drilling all the holes, we used 1 1/4 in. deck screws to assemble all the pieces. Before bringing the catapult in to class Nick wants to paint both the catapult and the base.
And a little bit more:
Hi Will, My son and I just built a catapult for his 8th grade science class. The requirement was to throw a tennis ball 30 feet. My son came up with the design and after a quick trip to Home Depot and about 2 hours in the garage building we finished the project. We tested and found it will throw a tennis ball 45 feet on the fly. The base plywood is the sink cutout from our kitchen granite counter remodel last year and the cup is from my wife's laundry detergent jug. My son Nick and I both enjoyed your web site. Thanks!
Nick and his dad have re-designed this catapult and built an even more powerful one that launches a projectile 60 feet! You can check out that catapult here
New Project: How to make a Mouse trap Catapult in about 1 minute. You don't need much and this thing is really powerful. You can probably fire small projectiles about 40 feet. How to make a Mouse Trap catapult
