The Under-Pult Upside down Catapult

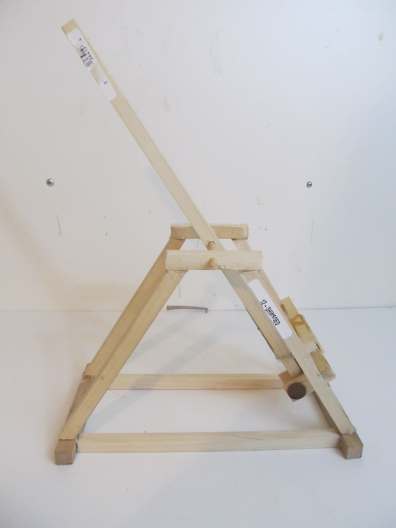

Here is a picture of the completed Undepult

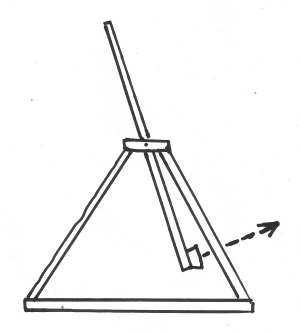

This graphic shows you exactly how the underpult works. Rather than throwing the projectile from the top it throws from the bottom.

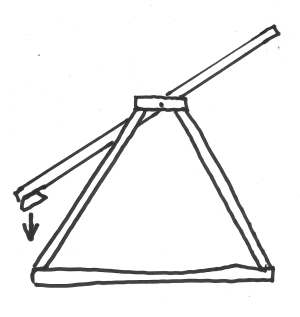

But this kind of a catapult setup causes a bit of a problem. The graphic here shows that. When you draw back the throw arm to fire it the projectile is going to fall right out of the cup! So, we have to design something to fix this. We want the projectile to be held in the cup with the throw arm drawn back but we want the projectile to freely release at the point of fire.

To solve this problem I created a little setup called The Caddy. It holds the projectile throughout the swing of the arm yet lets it release freely.

It's a little bucket that hinges on the swing arm. You can see the clay projectile ball in the caddy.

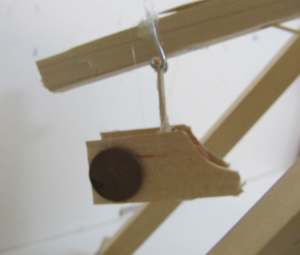

This picture shows the caddy in the loaded position. The tension is now on and it just needs to be released to fire. See how the caddy stays horizontal and hold the projectile in place?

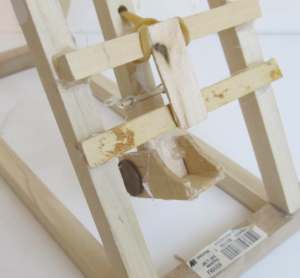

And this picture shows the catapult just at the moment of fire. The throw arm slaps directly against the stop. This holds the caddy tightly in position and releases the projectile to fire.

I have a video showing this catapult. You can learn more about it and see how it works right here:
