How To Build A Catapult

Build the Table-Top Troll Catapult. This is a great little siege engine that really hurls projectiles! You just need some wood, a few screws, a rubber band and a couple of hours. This little catapult really hurls projectiles. And you can really tweak it to be quite a powerful little troll.

This is a tiny replica of the massive siege engines that were used to tear down castle walls in the Middle Ages.

This tutorial on how to build a catapult takes you through all the steps in showing you how to do it. Want to see it in action? Here is a quicktime video of this catapult in action - Table Top Troll Catapult video.

What do you need to build this catapult?

Parts List: You don't need a whole lot of parts or tools to make this catapult and this is just a suggested list and these are the parts I use to make the catapult in this tutorial. You can fudge and replace lots of the parts. If you are creative there is a whole host of parts and things you could use instead of these parts. As you can see though it is pretty basic and you don't need a lot to build a basic catapult.

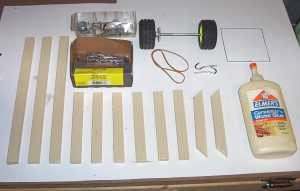

parts in the picture:

• 3 pieces of wood 12 inches long
• 8 pieces of wood 6 inches long ( two of these pieces have the ends cut at 45 degree angles - I will explain more about these.
• An assortment of small screws and/or nails
• 1 large rubber band or several smaller ones
• 2 eye hooks (to the right of the rubber band
• Some glue (optional but a good idea)
• 1 four inch square piece of cardboard or poster board (This is the basket that your projectile sits in
• 1 metal bar at least 6 inches long, I am using the axle from an old toy car (thats the wheels)

About the metal bar from the axle: This is what I am using but you can use almost anything similar. This is going to be the pivot point for the catapult arm so you need something thin and strong. Here are some suggested things you could use: very firm coathanger wire - the cut off blade of a screwdriver, the metal bar handle from a bucket. Take a look at the close up of the catapult arm pivot on the left. See how it is going to be installed. So think of this and find some kind of metal bar for this. If all else fails you could even use a pencil or a pen. You would just have to drill a hole large enough for it to pass through. I used the axle from a toy car which works perfectly. So you may want to scrounge through your toy box to find one.

That's pretty much everything unless you want to paint and decorate your catapult. So lets start on the tutorial and make one ourselves!

Let's Begin building our Catapult !
