The 1 Inch catapult

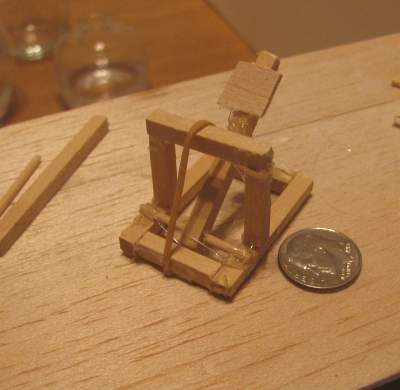

This picture shows the completed catapult.

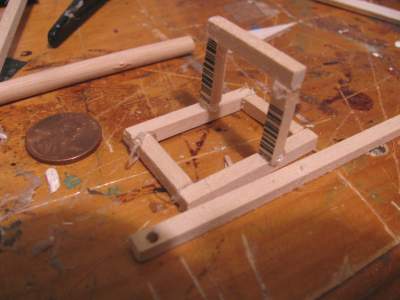

The most difficult part, which wasn't very difficult at all, was drilling the hole for he swing arm pivot.

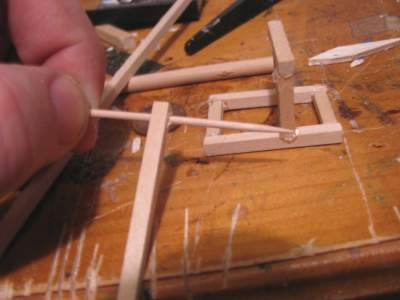

A toothpick goes in the hole and rotates smoothly so the swing arm can pivot. After this I just need to glue the pivot down to the base of the catapult then cut a small length of rubber band and hot glue that down.

I made this catapult for a stop motion animation project where I had to duplicate my arts and crafts room and that meant I had to have a miniature catapult! The catapult is in this video:
