An Arsenal of Catapults

These pictures of catapults were submitted by John D. Thanks John! He used my Ogre project as a template for this project. Here is what he has to say about this project:

I am contacting you from a youth project in Dublin, Ireland.  Thank   you for the info and plans on your website. We are using the "Little Ogre" primarily as a team building exercise with 11 to 12 year olds in our local primary school.  We are also  using Little Ogre to experiment with Physics theories.

The class will divide into teams to assemble their own Little Ogre, 6 in all ) and we will then experiment with different projectiles to look at Kinetic energy, Friction, Force. I have made one Little Ogre and we will be making the other six   tomorrow for use in the classroom next week.
Again Thanks, finding your site has made my job a lot easier and a whole lot more Fun.

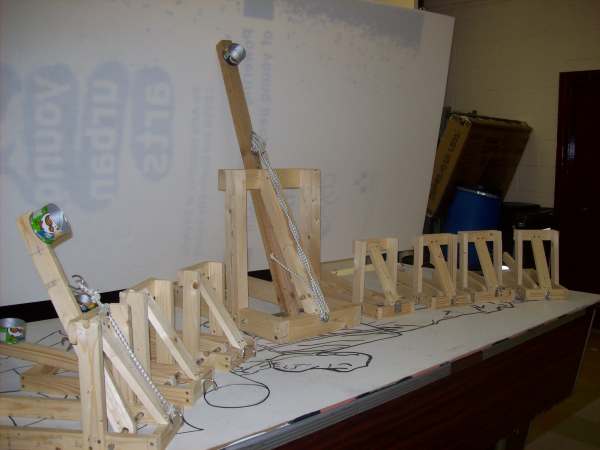

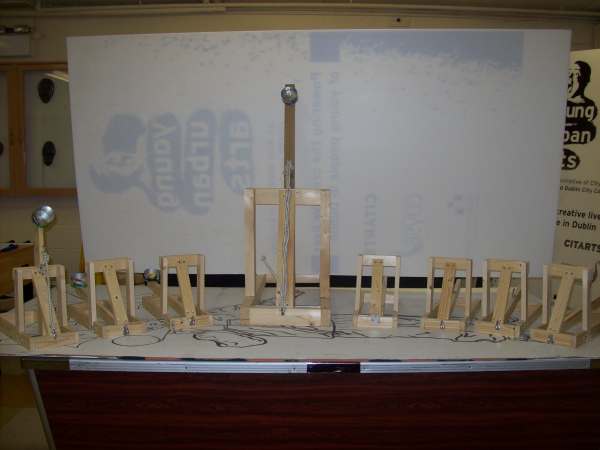

I have attached a couple of pics of our arsenal.  The small ones are 3/4 size and the larger is 1 1/2 size.
Once i have fitted the Bungee chord and the last of the cups to the arms, we will dismantle all of the small ones into Kit-Form for   re-assembly in the classroom on Wednesday.
