The Rubber Band Powered Catapult

Here is a great little catapult project based loosely on my popsicle stick catapult and designed by Tom Wilson. He also put together this whole tutorial. My thanks to him for this! It's a fun and easy project. With just a few materials you can build this powerful little catapult in no time at all.

Note from Will: I also have this neat little catapult project made from popsicle sticks:

The Teeny-Tiny Popsicle Stick Catapult - The Hobbit Fun little project that comes with a video of me shooting a projectile into a Lord of the Rings Mug. This little catapult is great for having little competitions with friends. Build two and make a game of this project.

Pros :

• --Fairly simple to build
• --Fairly powerful, High trajectory, great "hang time"
• --Fairly durable if built correctly; easy to repair

Cons :

• --Not historically authentic
• --Can self-destruct if not made correctly!
• --Less accurate than more complicated models

Materials :

• 11 Sticks
• Masking Tape
• 1 ½" square piece of paper
• Rubber band
• Hot glue
• Scissors

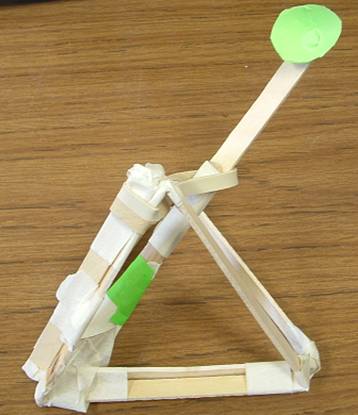

1.  Make the Base.

Lay three sticks end to end.   Tape them together.

•  Fold into a triangle and tape.

•  Repeat steps 1-3.

•  Repeat steps 1-3 again. You now have three triangles.

•  Place two triangles side by side. Tape together one side.

•  Open un-taped ends; place the third triangle between them.

•  Tape this third triangle in place to complete the pyramid.

•  Notice that three sides are made of double sticks. These are the "strong sides." The place where the three strong sides join is the "strong corner." Locate these places before continuing.

2. Make the Throwing Arm

•  Tape or glue two sticks together so they overlap and are approximately 6-7" in length.

?? How might changing the length of the arm affect velocity and trajectory?

•  Make a cut to the center of your paper.

•  Fold paper into a cone. Glue or tape in place.

•  Trim corners round.

•  Smash point of cone flat with your finger. Glue to end of throwing arm.

3. Attach arm and rubber band.

•  Fold rubber band around strong side of pyramid.

?? How might using thicker, thinner, longer, or shorter rubber bands affect performance? Are there any risks to using a stronger band?

•  Pull outside loop down through the inside loop.

•  Insert throwing arm through rubber band loop, with cone pointing up.

•  Using two 6" long pieces of tape, attach arm to strong corner of pyramid.

•  Wrap one piece of tape around arm to secure tape.

?? How might attaching the arm more loosely affect velocity? Are there any risks to doing this?

4  Firing

•   Hold base at strong corner with one hand
•   Place projectile in cone.
•   Pull arm down all the way. Release.
